Pulsator — Compact Series

Mini
Projector

Invisible at rest. Unmistakable when it fires.

Custom-grade LED chip behind a precision optical projection lens. Aluminum alloy threaded heat dissipation. Five diameters from 18mm to 30mm. IP67 sealed from −30°C to +100°C.

IP67 −30°C / +100°C 18 / 20 / 22 / 25 / 30mm Aluminum Alloy DC 12–24V Optical Lens

Full Specifications Request Quote →

Select Diameter

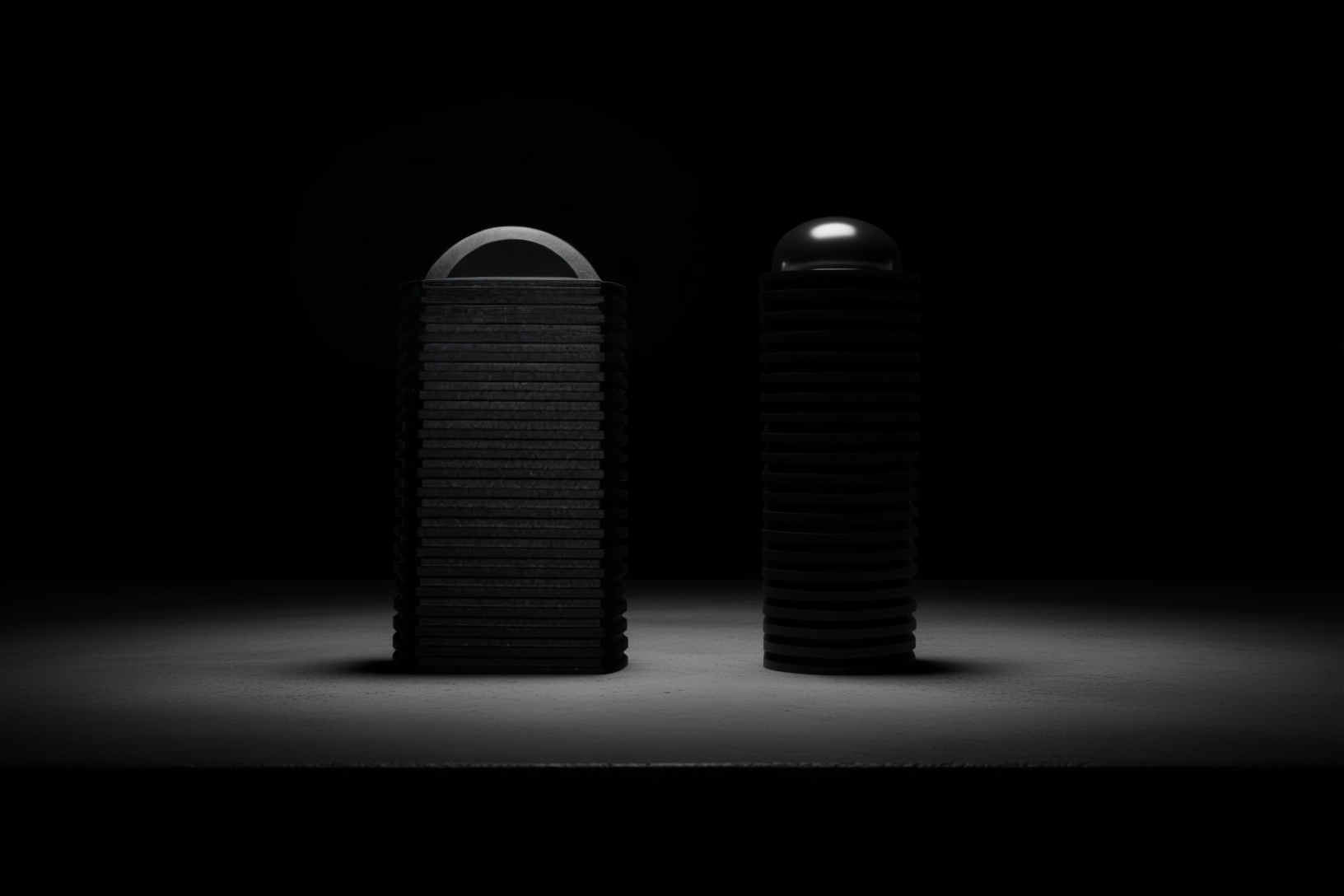

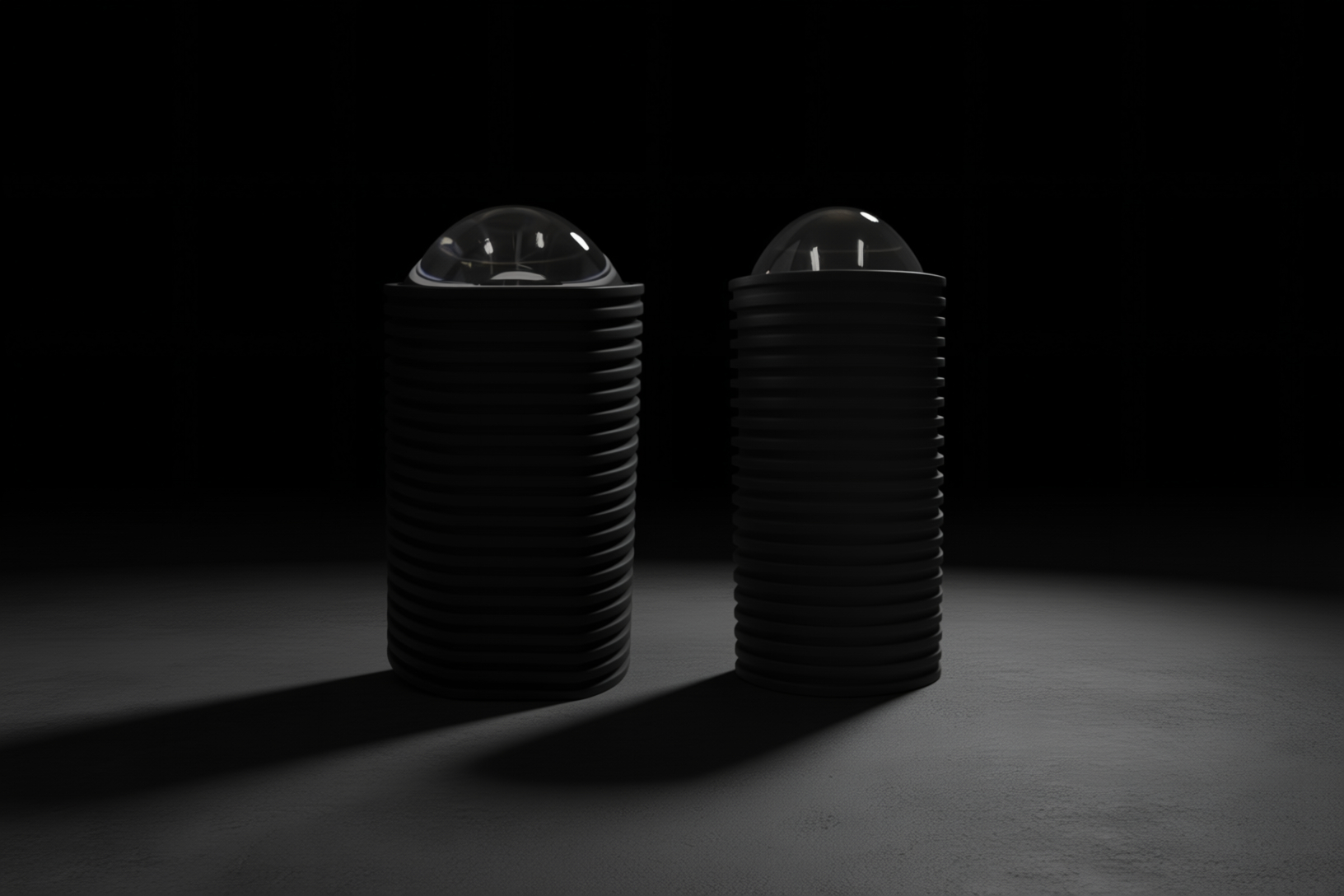

18mm

18mm Grille Opening

IP67 −30°C / +100°C DC 12–24V Al Alloy

IP67 Waterproof−30°C to +100°COptical Lens ProjectionThreaded Heat Dissipation5 Sizes: 18–30mmDC 12V–24VHidden Grille InstallAluminum Alloy Housing IP67 Waterproof−30°C to +100°COptical Lens ProjectionThreaded Heat Dissipation5 Sizes: 18–30mmDC 12V–24VHidden Grille InstallAluminum Alloy Housing

Durability Proven

Tested in Every Extreme

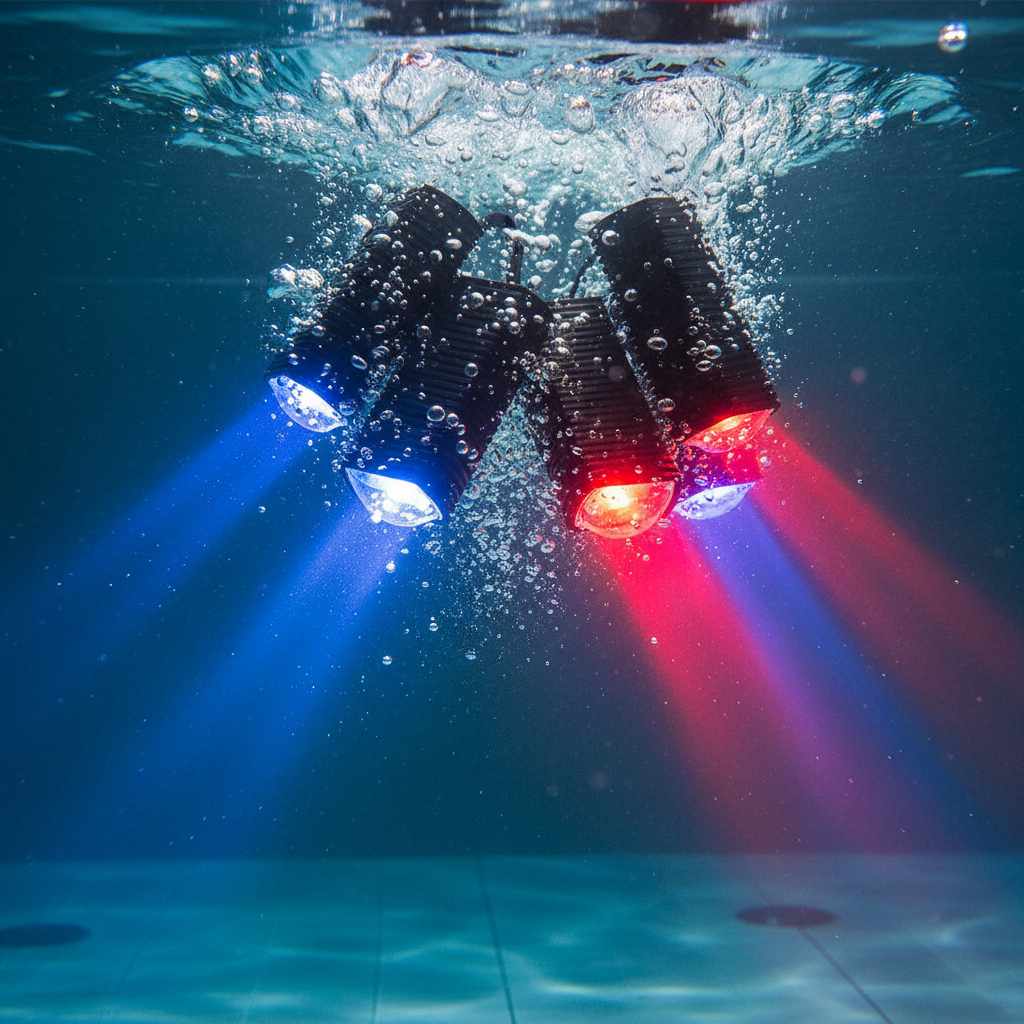

Mini Projector underwater firing blue and red

IP67Waterproof

Submersion Test

Firing at Full Output — Underwater

IP67 rated. Submerged and still blazing. Blue and red beams cut through water as cleanly as through air.

Deep Submersion

1 Meter / 30 Minutes

IP67 protocol — full submersion, full survival, full output on retrieval.

Monsoon Test

Heavy Rain — Full Output

Firing at full brightness through monsoon conditions. Water sheeting off the housing, beam cutting through the downpour.

Cold Resistance

−30°C

Minimum Operating Temperature

Arctic Conditions

Frozen solid, ice-encased, still firing at full brightness. Pulsator activates instantly from −30°C with zero warmup time required.

Heat Resistance

+100°C

Maximum Operating Temperature

Desert Operations

Cracked earth, 100°C ambient, full output sustained. Aluminum alloy threaded fins dissipate heat before it reaches the LED junction.

Engineering Detail

Four Reasons It Performs

Optical Lens Projection

Direct-projection optical lens. Not diffused — a focused beam at distance. Flush with grille, invisible until activated.

Threaded Heat Dissipation

Aluminum alloy with threaded fin architecture. Every groove accelerates thermal transfer. Sustained full-power output without throttling.

IP67 Total Seal

Impact-resistant and corrosion-resistant. −30°C to +100°C. Full submersion rated. Monsoon, pressure wash, Arctic freeze — seal holds.

Hidden Grille Install

Five diameters 18–30mm to match any grille gap. Mounts flush behind bars, completely concealed at rest. Auxiliary brightness for low beam and fog.

Technical Data

Full Specifications

Physical & Protection

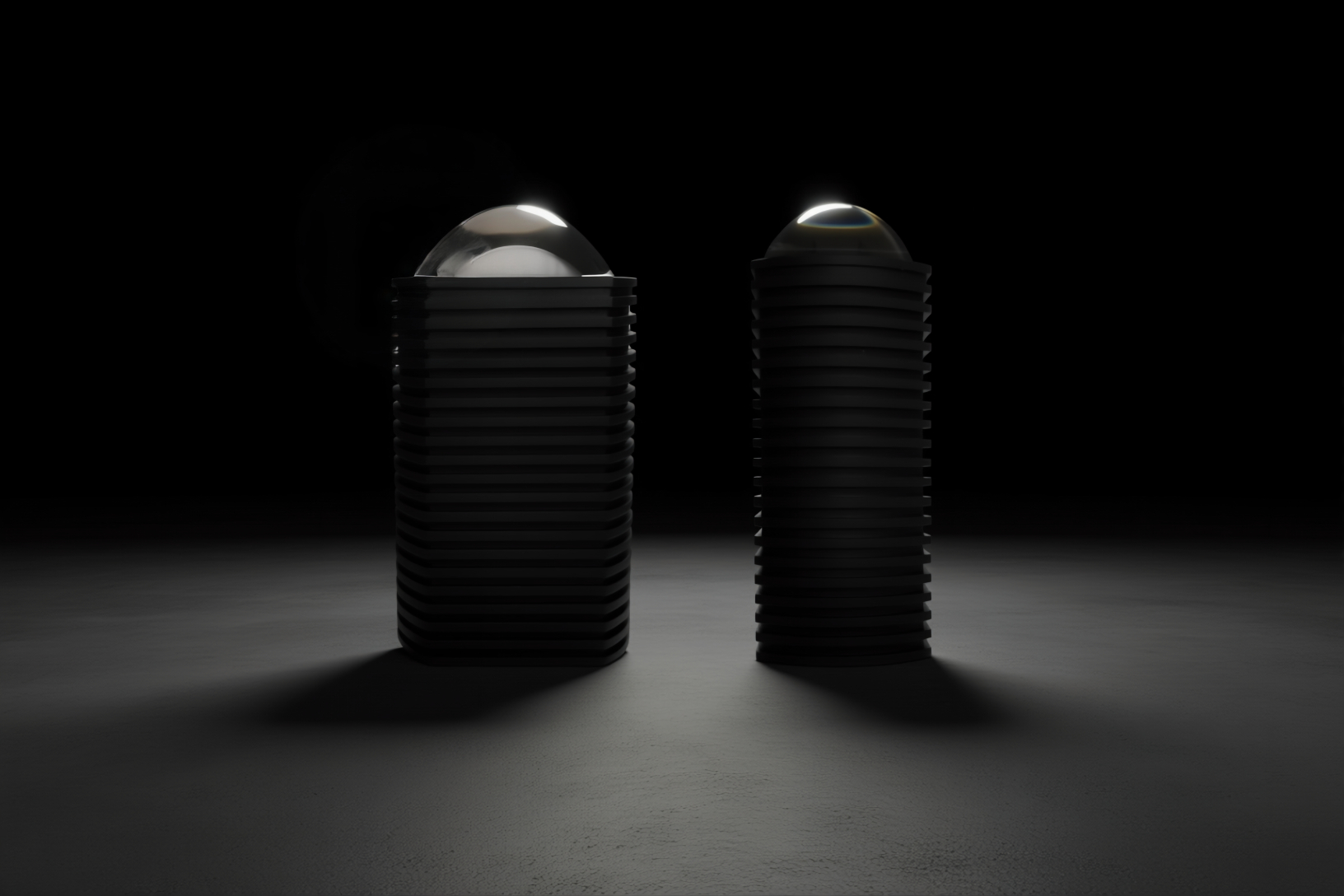

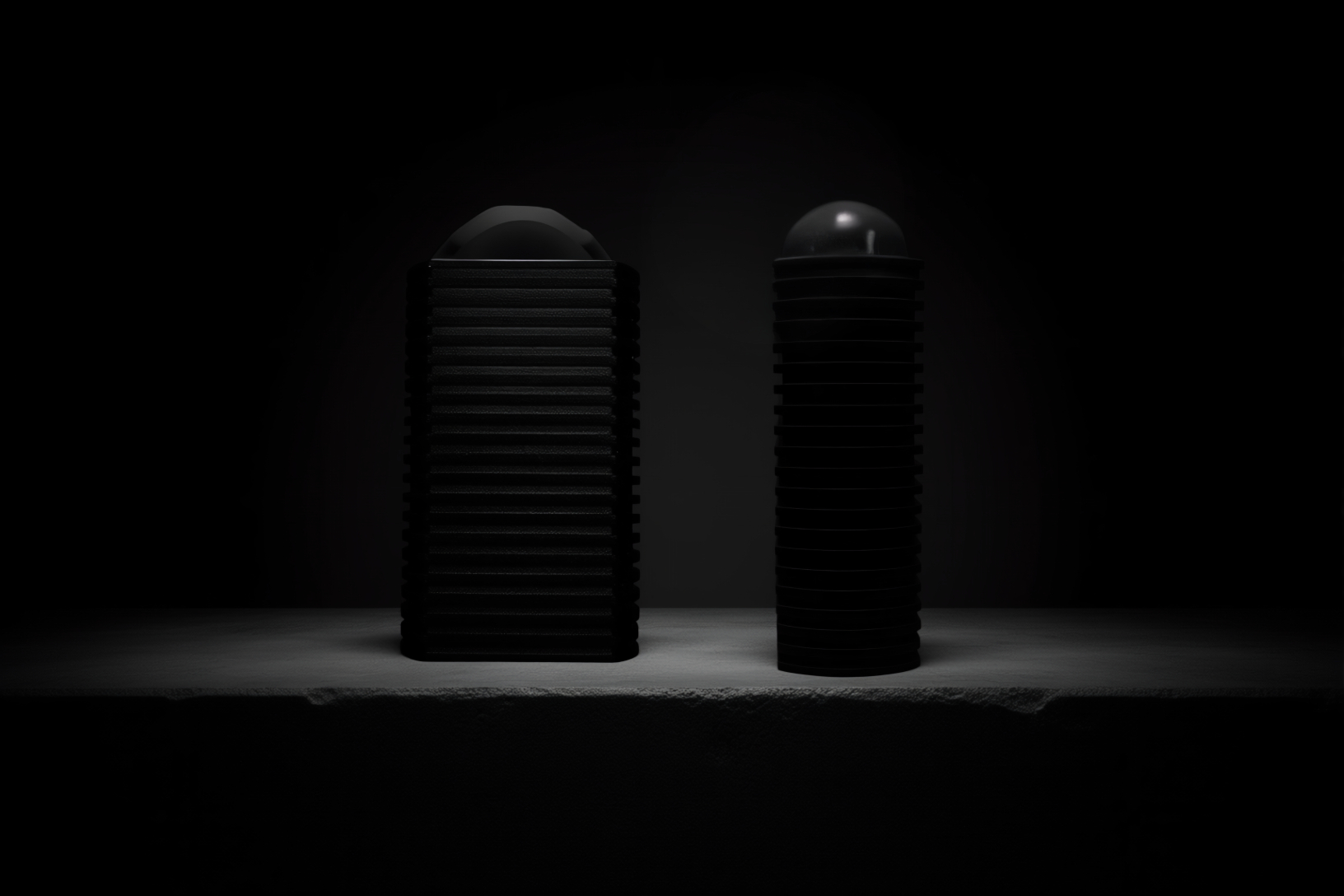

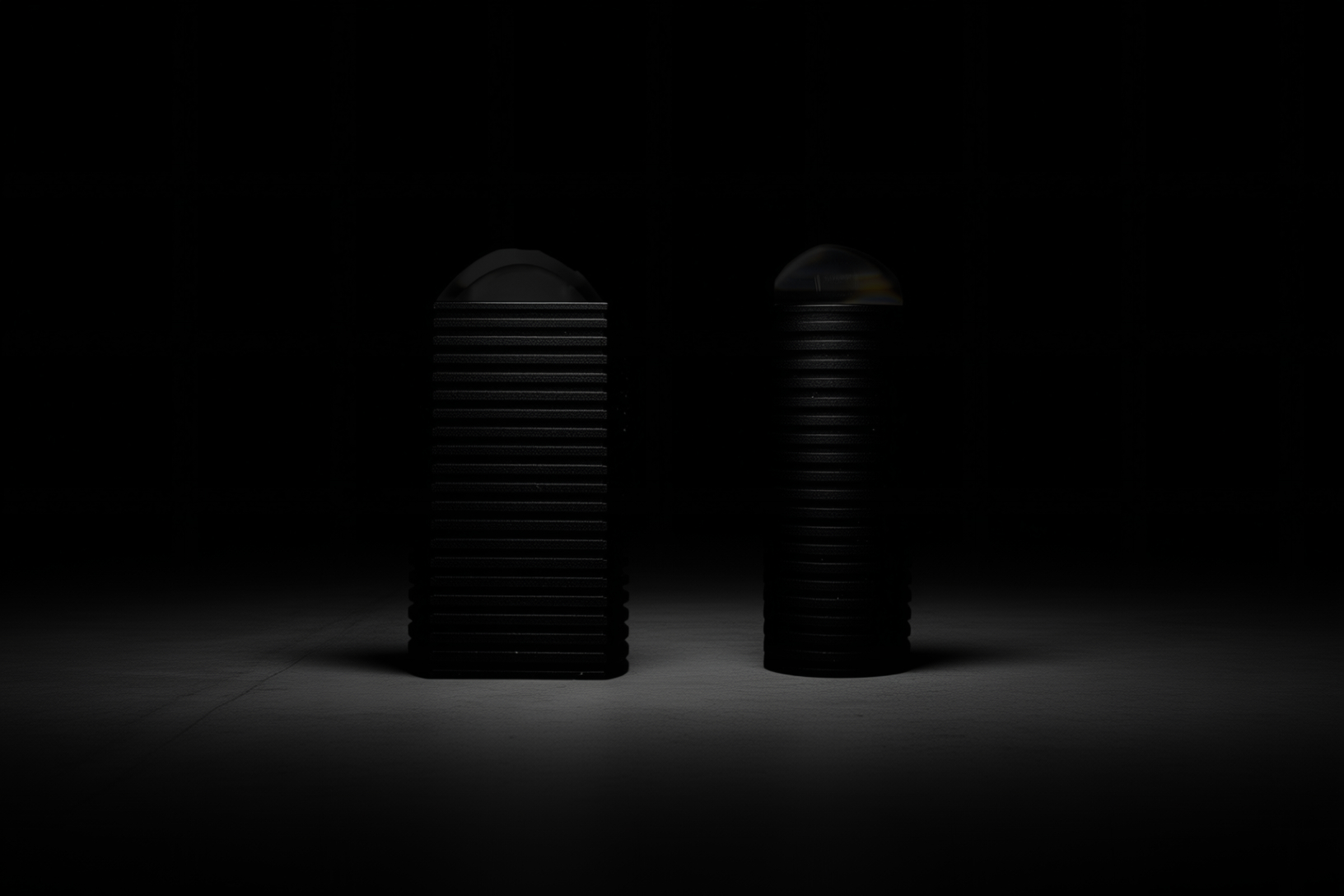

Available Diameters18 / 20 / 22 / 25 / 30mm

Housing Height64mm

Reference Width34.5mm

Housing MaterialAluminum Alloy

Thermal DesignThreaded Fin Heat Dissipation

Waterproof RatingIP67

Impact ResistanceYes — Corrosion Resistant

Min Operating Temp−30°C

Max Operating Temp+100°C

Optical & Electrical

LED TypeCustom-Grade LED Chip

OpticsOptical Lens Direct Projection

Beam TypeFocused Projection

ApplicationLow Beam / Fog / Auxiliary

Install DesignHidden — Flush Grille Mount

Input VoltageDC 12V – 24V

Available Sizes5 Options: 18–30mm

Installation

Three Steps to Authority

Step One

Select Your Diameter

Measure your grille gap. Choose from 18, 20, 22, 25, or 30mm. The projector should sit flush — no protrusion, no gap.

Step Two

Mount Behind Grille

Position behind the grille bar with the optical lens facing forward. Completely invisible from outside — zero visual signature at rest.

Step Three

Wire and Activate

Connect to DC 12V–24V. Full output from cold start at −30°C — no warmup, no delay.
